A 5.0-m long,12-kg uniform ladder rests against a smooth vertical wall with the bottom of the ladder 3.0 m from the wall.The coefficient of static friction between the floor and the ladder is 0.28.What distance,measured along the ladder from the bottom,can a 60-kg person climb before the ladder starts to slip?


A) 4.0 m
B) 3.7 m
C) 1.7 m
D) 1.3 m
E) 3.3 m

Correct Answer

verifed

verified

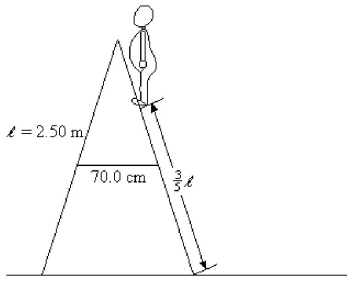

A stepladder consists of two halves,hinged at the top,and connected by a tie rod that keeps the two halves from spreading apart.In this particular instance,the two halves are 2.50 m long,the tie rod is connected to the center of each half and is 70.0 cm long.An 800-N person stands 3/5 of the way up the stepladder,as shown in the figure.Neglecting the weight of the ladder,and assuming that the ladder is resting on a smooth floor,what is the tension in the tie rod? Note: To solve this problem you must "cut" the ladder in half and consider the equilibrium of forces and torques acting on each half of the ladder. A stepladder consists of two halves,hinged at the top,and connected by a tie rod that keeps the two halves from spreading apart.In this particular instance,the two halves are 2.50 m long,the tie rod is connected to the center of each half and is 70.0 cm long.An 800-N person stands 3/5 of the way up the stepladder,as shown in the figure.Neglecting the weight of the ladder,and assuming that the ladder is resting on a smooth floor,what is the tension in the tie rod? Note: To solve this problem you must cut the ladder in half and consider the equilibrium of forces and torques acting on each half of the ladder. A) 140 N B) 240 N C) 280 N D) 360 N E) 560 N


A) 140 N
B) 240 N
C) 280 N
D) 360 N
E) 560 N

Correct Answer

verifed

verified

When a rigid body rotates about a fixed axis,all the points in the body have the same


A) tangential speed.
B) angular acceleration.
C) tangential acceleration.
D) linear displacement.
E) centripetal acceleration.

Correct Answer

verifed

verified

A uniform solid cylindrical log begins rolling without slipping down a ramp that rises 28.0° above the horizontal.After it has rolled 4.20 m along the ramp,what is the magnitude of the linear acceleration of its center of mass?


A) 9.80 m/s2
B) 4.60 m/s2
C) 3.29 m/s2
D) 3.07 m/s2
E) 2.30 m/s2

Correct Answer

verifed

verified

A force A force = 3.00 N - 2.00 N acts at a location = 1.00 m + 2.00 m on an object.What is the torque that this force applies about an axis through the origin perpendicular to the xy-plane? A) -1.00 N ∙ m B) 7.00 N ∙ m C) -3.00 N ∙ m D) 5.00 N ∙ m E) -8.00 N ∙ m = 3.00 N A force = 3.00 N - 2.00 N acts at a location = 1.00 m + 2.00 m on an object.What is the torque that this force applies about an axis through the origin perpendicular to the xy-plane? A) -1.00 N ∙ m B) 7.00 N ∙ m C) -3.00 N ∙ m D) 5.00 N ∙ m E) -8.00 N ∙ m - 2.00 N A force = 3.00 N - 2.00 N acts at a location = 1.00 m + 2.00 m on an object.What is the torque that this force applies about an axis through the origin perpendicular to the xy-plane? A) -1.00 N ∙ m B) 7.00 N ∙ m C) -3.00 N ∙ m D) 5.00 N ∙ m E) -8.00 N ∙ m acts at a location A force = 3.00 N - 2.00 N acts at a location = 1.00 m + 2.00 m on an object.What is the torque that this force applies about an axis through the origin perpendicular to the xy-plane? A) -1.00 N ∙ m B) 7.00 N ∙ m C) -3.00 N ∙ m D) 5.00 N ∙ m E) -8.00 N ∙ m = 1.00 m A force = 3.00 N - 2.00 N acts at a location = 1.00 m + 2.00 m on an object.What is the torque that this force applies about an axis through the origin perpendicular to the xy-plane? A) -1.00 N ∙ m B) 7.00 N ∙ m C) -3.00 N ∙ m D) 5.00 N ∙ m E) -8.00 N ∙ m + 2.00 m A force = 3.00 N - 2.00 N acts at a location = 1.00 m + 2.00 m on an object.What is the torque that this force applies about an axis through the origin perpendicular to the xy-plane? A) -1.00 N ∙ m B) 7.00 N ∙ m C) -3.00 N ∙ m D) 5.00 N ∙ m E) -8.00 N ∙ m on an object.What is the torque that this force applies about an axis through the origin perpendicular to the xy-plane?


A) -1.00 N ∙ m A force = 3.00 N - 2.00 N acts at a location = 1.00 m + 2.00 m on an object.What is the torque that this force applies about an axis through the origin perpendicular to the xy-plane? A) -1.00 N ∙ m B) 7.00 N ∙ m C) -3.00 N ∙ m D) 5.00 N ∙ m E) -8.00 N ∙ m
B) 7.00 N ∙ m A force = 3.00 N - 2.00 N acts at a location = 1.00 m + 2.00 m on an object.What is the torque that this force applies about an axis through the origin perpendicular to the xy-plane? A) -1.00 N ∙ m B) 7.00 N ∙ m C) -3.00 N ∙ m D) 5.00 N ∙ m E) -8.00 N ∙ m
C) -3.00 N ∙ m A force = 3.00 N - 2.00 N acts at a location = 1.00 m + 2.00 m on an object.What is the torque that this force applies about an axis through the origin perpendicular to the xy-plane? A) -1.00 N ∙ m B) 7.00 N ∙ m C) -3.00 N ∙ m D) 5.00 N ∙ m E) -8.00 N ∙ m
D) 5.00 N ∙ m A force = 3.00 N - 2.00 N acts at a location = 1.00 m + 2.00 m on an object.What is the torque that this force applies about an axis through the origin perpendicular to the xy-plane? A) -1.00 N ∙ m B) 7.00 N ∙ m C) -3.00 N ∙ m D) 5.00 N ∙ m E) -8.00 N ∙ m
E) -8.00 N ∙ m A force = 3.00 N - 2.00 N acts at a location = 1.00 m + 2.00 m on an object.What is the torque that this force applies about an axis through the origin perpendicular to the xy-plane? A) -1.00 N ∙ m B) 7.00 N ∙ m C) -3.00 N ∙ m D) 5.00 N ∙ m E) -8.00 N ∙ m

Correct Answer

verifed

verified

As you are leaving a building,the door opens outward.If the hinges on the door are on your right,what is the direction of the angular velocity of the door as you open it?


A) up
B) down
C) to your left
D) to your right
E) forwards

Correct Answer

verifed

verified

A machinist turns the power on to a grinding wheel,which is at rest at time t = 0.00 s.The wheel accelerates uniformly for 10 s and reaches the operating angular velocity of A machinist turns the power on to a grinding wheel,which is at rest at time t = 0.00 s.The wheel accelerates uniformly for 10 s and reaches the operating angular velocity of The wheel is run at that angular velocity for 37 s and then power is shut off.The wheel decelerates uniformly at until the wheel stops.In this situation,the time interval of angular deceleration (slowing down) is closest to: A) 17 s B) 15 s C) 19 s D) 21 s E) 23 s The wheel is run at that angular velocity for 37 s and then power is shut off.The wheel decelerates uniformly at A machinist turns the power on to a grinding wheel,which is at rest at time t = 0.00 s.The wheel accelerates uniformly for 10 s and reaches the operating angular velocity of The wheel is run at that angular velocity for 37 s and then power is shut off.The wheel decelerates uniformly at until the wheel stops.In this situation,the time interval of angular deceleration (slowing down) is closest to: A) 17 s B) 15 s C) 19 s D) 21 s E) 23 s until the wheel stops.In this situation,the time interval of angular deceleration (slowing down) is closest to:


A) 17 s
B) 15 s
C) 19 s
D) 21 s
E) 23 s

Correct Answer

verifed

verified

What is the torque about the origin on a particle located at What is the torque about the origin on a particle located at<sub> </sub> <sub> </sub> = 3 m + 4 m - 2 m if a force = 5 N - 2 N + 3 N acts on the particle? A) (8 + - 26 ) N ∙ m B) (8 - 19 - 26 ) N ∙ m C) (8 + 2 + ) N ∙ m D) (16 - 19 - 26 ) N ∙ m E) (8 - 2 + ) N ∙ m = 3 m What is the torque about the origin on a particle located at<sub> </sub> <sub> </sub> = 3 m + 4 m - 2 m if a force = 5 N - 2 N + 3 N acts on the particle? A) (8 + - 26 ) N ∙ m B) (8 - 19 - 26 ) N ∙ m C) (8 + 2 + ) N ∙ m D) (16 - 19 - 26 ) N ∙ m E) (8 - 2 + ) N ∙ m + 4 m What is the torque about the origin on a particle located at<sub> </sub> <sub> </sub> = 3 m + 4 m - 2 m if a force = 5 N - 2 N + 3 N acts on the particle? A) (8 + - 26 ) N ∙ m B) (8 - 19 - 26 ) N ∙ m C) (8 + 2 + ) N ∙ m D) (16 - 19 - 26 ) N ∙ m E) (8 - 2 + ) N ∙ m - 2 m What is the torque about the origin on a particle located at<sub> </sub> <sub> </sub> = 3 m + 4 m - 2 m if a force = 5 N - 2 N + 3 N acts on the particle? A) (8 + - 26 ) N ∙ m B) (8 - 19 - 26 ) N ∙ m C) (8 + 2 + ) N ∙ m D) (16 - 19 - 26 ) N ∙ m E) (8 - 2 + ) N ∙ m if a force What is the torque about the origin on a particle located at<sub> </sub> <sub> </sub> = 3 m + 4 m - 2 m if a force = 5 N - 2 N + 3 N acts on the particle? A) (8 + - 26 ) N ∙ m B) (8 - 19 - 26 ) N ∙ m C) (8 + 2 + ) N ∙ m D) (16 - 19 - 26 ) N ∙ m E) (8 - 2 + ) N ∙ m = 5 N What is the torque about the origin on a particle located at<sub> </sub> <sub> </sub> = 3 m + 4 m - 2 m if a force = 5 N - 2 N + 3 N acts on the particle? A) (8 + - 26 ) N ∙ m B) (8 - 19 - 26 ) N ∙ m C) (8 + 2 + ) N ∙ m D) (16 - 19 - 26 ) N ∙ m E) (8 - 2 + ) N ∙ m - 2 N What is the torque about the origin on a particle located at<sub> </sub> <sub> </sub> = 3 m + 4 m - 2 m if a force = 5 N - 2 N + 3 N acts on the particle? A) (8 + - 26 ) N ∙ m B) (8 - 19 - 26 ) N ∙ m C) (8 + 2 + ) N ∙ m D) (16 - 19 - 26 ) N ∙ m E) (8 - 2 + ) N ∙ m + 3 N What is the torque about the origin on a particle located at<sub> </sub> <sub> </sub> = 3 m + 4 m - 2 m if a force = 5 N - 2 N + 3 N acts on the particle? A) (8 + - 26 ) N ∙ m B) (8 - 19 - 26 ) N ∙ m C) (8 + 2 + ) N ∙ m D) (16 - 19 - 26 ) N ∙ m E) (8 - 2 + ) N ∙ m acts on the particle?


A) (8 What is the torque about the origin on a particle located at<sub> </sub> <sub> </sub> = 3 m + 4 m - 2 m if a force = 5 N - 2 N + 3 N acts on the particle? A) (8 + - 26 ) N ∙ m B) (8 - 19 - 26 ) N ∙ m C) (8 + 2 + ) N ∙ m D) (16 - 19 - 26 ) N ∙ m E) (8 - 2 + ) N ∙ m + What is the torque about the origin on a particle located at<sub> </sub> <sub> </sub> = 3 m + 4 m - 2 m if a force = 5 N - 2 N + 3 N acts on the particle? A) (8 + - 26 ) N ∙ m B) (8 - 19 - 26 ) N ∙ m C) (8 + 2 + ) N ∙ m D) (16 - 19 - 26 ) N ∙ m E) (8 - 2 + ) N ∙ m - 26 What is the torque about the origin on a particle located at<sub> </sub> <sub> </sub> = 3 m + 4 m - 2 m if a force = 5 N - 2 N + 3 N acts on the particle? A) (8 + - 26 ) N ∙ m B) (8 - 19 - 26 ) N ∙ m C) (8 + 2 + ) N ∙ m D) (16 - 19 - 26 ) N ∙ m E) (8 - 2 + ) N ∙ m ) N ∙ m
B) (8 What is the torque about the origin on a particle located at<sub> </sub> <sub> </sub> = 3 m + 4 m - 2 m if a force = 5 N - 2 N + 3 N acts on the particle? A) (8 + - 26 ) N ∙ m B) (8 - 19 - 26 ) N ∙ m C) (8 + 2 + ) N ∙ m D) (16 - 19 - 26 ) N ∙ m E) (8 - 2 + ) N ∙ m - 19 What is the torque about the origin on a particle located at<sub> </sub> <sub> </sub> = 3 m + 4 m - 2 m if a force = 5 N - 2 N + 3 N acts on the particle? A) (8 + - 26 ) N ∙ m B) (8 - 19 - 26 ) N ∙ m C) (8 + 2 + ) N ∙ m D) (16 - 19 - 26 ) N ∙ m E) (8 - 2 + ) N ∙ m - 26 What is the torque about the origin on a particle located at<sub> </sub> <sub> </sub> = 3 m + 4 m - 2 m if a force = 5 N - 2 N + 3 N acts on the particle? A) (8 + - 26 ) N ∙ m B) (8 - 19 - 26 ) N ∙ m C) (8 + 2 + ) N ∙ m D) (16 - 19 - 26 ) N ∙ m E) (8 - 2 + ) N ∙ m ) N ∙ m
C) (8 What is the torque about the origin on a particle located at<sub> </sub> <sub> </sub> = 3 m + 4 m - 2 m if a force = 5 N - 2 N + 3 N acts on the particle? A) (8 + - 26 ) N ∙ m B) (8 - 19 - 26 ) N ∙ m C) (8 + 2 + ) N ∙ m D) (16 - 19 - 26 ) N ∙ m E) (8 - 2 + ) N ∙ m + 2 What is the torque about the origin on a particle located at<sub> </sub> <sub> </sub> = 3 m + 4 m - 2 m if a force = 5 N - 2 N + 3 N acts on the particle? A) (8 + - 26 ) N ∙ m B) (8 - 19 - 26 ) N ∙ m C) (8 + 2 + ) N ∙ m D) (16 - 19 - 26 ) N ∙ m E) (8 - 2 + ) N ∙ m + What is the torque about the origin on a particle located at<sub> </sub> <sub> </sub> = 3 m + 4 m - 2 m if a force = 5 N - 2 N + 3 N acts on the particle? A) (8 + - 26 ) N ∙ m B) (8 - 19 - 26 ) N ∙ m C) (8 + 2 + ) N ∙ m D) (16 - 19 - 26 ) N ∙ m E) (8 - 2 + ) N ∙ m ) N ∙ m
D) (16 What is the torque about the origin on a particle located at<sub> </sub> <sub> </sub> = 3 m + 4 m - 2 m if a force = 5 N - 2 N + 3 N acts on the particle? A) (8 + - 26 ) N ∙ m B) (8 - 19 - 26 ) N ∙ m C) (8 + 2 + ) N ∙ m D) (16 - 19 - 26 ) N ∙ m E) (8 - 2 + ) N ∙ m - 19 What is the torque about the origin on a particle located at<sub> </sub> <sub> </sub> = 3 m + 4 m - 2 m if a force = 5 N - 2 N + 3 N acts on the particle? A) (8 + - 26 ) N ∙ m B) (8 - 19 - 26 ) N ∙ m C) (8 + 2 + ) N ∙ m D) (16 - 19 - 26 ) N ∙ m E) (8 - 2 + ) N ∙ m - 26 What is the torque about the origin on a particle located at<sub> </sub> <sub> </sub> = 3 m + 4 m - 2 m if a force = 5 N - 2 N + 3 N acts on the particle? A) (8 + - 26 ) N ∙ m B) (8 - 19 - 26 ) N ∙ m C) (8 + 2 + ) N ∙ m D) (16 - 19 - 26 ) N ∙ m E) (8 - 2 + ) N ∙ m ) N ∙ m
E) (8 What is the torque about the origin on a particle located at<sub> </sub> <sub> </sub> = 3 m + 4 m - 2 m if a force = 5 N - 2 N + 3 N acts on the particle? A) (8 + - 26 ) N ∙ m B) (8 - 19 - 26 ) N ∙ m C) (8 + 2 + ) N ∙ m D) (16 - 19 - 26 ) N ∙ m E) (8 - 2 + ) N ∙ m - 2 What is the torque about the origin on a particle located at<sub> </sub> <sub> </sub> = 3 m + 4 m - 2 m if a force = 5 N - 2 N + 3 N acts on the particle? A) (8 + - 26 ) N ∙ m B) (8 - 19 - 26 ) N ∙ m C) (8 + 2 + ) N ∙ m D) (16 - 19 - 26 ) N ∙ m E) (8 - 2 + ) N ∙ m + What is the torque about the origin on a particle located at<sub> </sub> <sub> </sub> = 3 m + 4 m - 2 m if a force = 5 N - 2 N + 3 N acts on the particle? A) (8 + - 26 ) N ∙ m B) (8 - 19 - 26 ) N ∙ m C) (8 + 2 + ) N ∙ m D) (16 - 19 - 26 ) N ∙ m E) (8 - 2 + ) N ∙ m ) N ∙ m

Correct Answer

verifed

verified

A uniform solid 5.25-kg cylinder is released from rest and rolls without slipping down an inclined plane inclined at 18° to the horizontal.How fast is it moving after it has rolled 2.2 m down the plane?


A) 4.3 m/s
B) 5.2 m/s
C) 3.0 m/s
D) 3.7 m/s
E) 2.6 m/s

Correct Answer

verifed

verified

A 1.15-kg grinding wheel 22.0 cm in diameter is spinning counterclockwise at a rate of 20.0 revolutions per second.When the power to the grinder is turned off,the grinding wheel slows with constant angular acceleration and takes 80.0 s to come to a rest. (a)What was the angular acceleration (in rad/s2)of the grinding wheel as it came to rest if we take a counterclockwise rotation as positive? (b)How many revolutions did the wheel make during the time it was coming to rest?

Correct Answer

verifed

verified

(a)-1.57 r...

View Answer

What is the magnitude of the cross product of a vector of magnitude 2.00 m pointing east and a vector of magnitude 4.00 m pointing 30.0° west of north?


A) 6.93
B) -6.93
C) 4.00
D) -4.00
E) 8.00

Correct Answer

verifed

verified

A 72.0-kg person pushes on a small doorknob with a force of 5.00 N perpendicular to the surface of the door.The doorknob is located 0.800 m from axis of the frictionless hinges of the door.The door begins to rotate with an angular acceleration of 2.00 rad/s2.What is the moment of inertia of the door about the hinges?


A) 4.28 kg ∙ m2
B) 7.52 kg ∙ m2
C) 1.88 kg ∙ m2
D) 0.684 kg ∙ m2
E) 2.74 kg ∙ m2

Correct Answer

verifed

verified

A light triangular plate OAB is in a horizontal plane.Three forces, A light triangular plate OAB is in a horizontal plane.Three forces, and act on the plate,which is pivoted about a vertical axes through point O.In the figure, <sub>2</sub> is perpendicular to OB.Consider the counterclockwise sense as positive.The sum of the torques about the vertical axis through point O,acting on the plate due to forces F<sub>1</sub>,F<sub>2</sub>,and F<sub>3</sub>,is closest to A) 4.1 N ∙ m. B) 5.4 N ∙ m. C) -4.1 N ∙ m. D) -5.4 N ∙ m. E) zero. A light triangular plate OAB is in a horizontal plane.Three forces, and act on the plate,which is pivoted about a vertical axes through point O.In the figure, <sub>2</sub> is perpendicular to OB.Consider the counterclockwise sense as positive.The sum of the torques about the vertical axis through point O,acting on the plate due to forces F<sub>1</sub>,F<sub>2</sub>,and F<sub>3</sub>,is closest to A) 4.1 N ∙ m. B) 5.4 N ∙ m. C) -4.1 N ∙ m. D) -5.4 N ∙ m. E) zero. and A light triangular plate OAB is in a horizontal plane.Three forces, and act on the plate,which is pivoted about a vertical axes through point O.In the figure, <sub>2</sub> is perpendicular to OB.Consider the counterclockwise sense as positive.The sum of the torques about the vertical axis through point O,acting on the plate due to forces F<sub>1</sub>,F<sub>2</sub>,and F<sub>3</sub>,is closest to A) 4.1 N ∙ m. B) 5.4 N ∙ m. C) -4.1 N ∙ m. D) -5.4 N ∙ m. E) zero. act on the plate,which is pivoted about a vertical axes through point O.In the figure, A light triangular plate OAB is in a horizontal plane.Three forces, and act on the plate,which is pivoted about a vertical axes through point O.In the figure, <sub>2</sub> is perpendicular to OB.Consider the counterclockwise sense as positive.The sum of the torques about the vertical axis through point O,acting on the plate due to forces F<sub>1</sub>,F<sub>2</sub>,and F<sub>3</sub>,is closest to A) 4.1 N ∙ m. B) 5.4 N ∙ m. C) -4.1 N ∙ m. D) -5.4 N ∙ m. E) zero. 2 is perpendicular to OB.Consider the counterclockwise sense as positive.The sum of the torques about the vertical axis through point O,acting on the plate due to forces F1,F2,and F3,is closest to A light triangular plate OAB is in a horizontal plane.Three forces, and act on the plate,which is pivoted about a vertical axes through point O.In the figure, <sub>2</sub> is perpendicular to OB.Consider the counterclockwise sense as positive.The sum of the torques about the vertical axis through point O,acting on the plate due to forces F<sub>1</sub>,F<sub>2</sub>,and F<sub>3</sub>,is closest to A) 4.1 N ∙ m. B) 5.4 N ∙ m. C) -4.1 N ∙ m. D) -5.4 N ∙ m. E) zero.


A) 4.1 N ∙ m.
B) 5.4 N ∙ m.
C) -4.1 N ∙ m.
D) -5.4 N ∙ m.
E) zero.

Correct Answer

verifed

verified

In the figure,the rotor of a gyroscope is a uniform disk that has a radius of 13.8 cm and a moment of inertia about its axis of 4.0 × 10-3 kg ∙ m2.The length of the rotor shaft is 6.9 cm.The ball pivot at P is frictionless.At a given instant,the rotor shaft is horizontal and the rotor is rotating with an angular velocity of 90 rad/s about its axis OP,as shown.The rotor is viewed from point Q on the axis.The precessional linear velocity of point O,including the direction seen from point Q,is closest to In the figure,the rotor of a gyroscope is a uniform disk that has a radius of 13.8 cm and a moment of inertia about its axis of 4.0 × 10<sup>-3</sup> kg ∙ m<sup>2</sup>.The length of the rotor shaft is 6.9 cm.The ball pivot at P is frictionless.At a given instant,the rotor shaft is horizontal and the rotor is rotating with an angular velocity of 90 rad/s about its axis OP,as shown.The rotor is viewed from point Q on the axis.The precessional linear velocity of point O,including the direction seen from point Q,is closest to A) 0.054 m/s,leftward B) 0.054 m/s,upward C) 0.054 m/s,rightward D) 0.11 m/s,downward E) 0.11 m/s,rightward


A) 0.054 m/s,leftward
B) 0.054 m/s,upward
C) 0.054 m/s,rightward
D) 0.11 m/s,downward
E) 0.11 m/s,rightward

Correct Answer

verifed

verified

A bicycle wheel of radius 0.36 m and mass 3.2 kg is set spinning at 4.00 rev/s.A very light bolt is attached to extend the axle in length,and a string is attached to the axle at a distance of 0.10 m from the wheel.Initially the axle of the spinning wheel is horizontal,and the wheel is suspended only from the string.We can ignore the mass of the axle and spokes.At what rate will the wheel process about the vertical?


A) 2.9 rpm
B) 1.9 rpm
C) 18 rpm
D) 0.30 rpm
E) 0.77 rpm

Correct Answer

verifed

verified

A 500-g particle is located at the point A 500-g particle is located at the point = 4m + 3m - 2m and is moving with a velocity = 5 m/s -2 ms + 4 m/s .What is the angular momentum of this particle about the origin? A) (24 - 6 - 8 ) kg ∙ m<sup>2</sup>/s B) (12 - 3 - 4 ) kg ∙ m<sup>2</sup>/s C) (8 + 14 - 13 ) kg ∙ m<sup>2</sup>/s D) (10 - + 2 ) kg ∙ m<sup>2</sup>/s E) (4 - 13 - 11.5 ) kg ∙ m<sup>2</sup>/s = 4m A 500-g particle is located at the point = 4m + 3m - 2m and is moving with a velocity = 5 m/s -2 ms + 4 m/s .What is the angular momentum of this particle about the origin? A) (24 - 6 - 8 ) kg ∙ m<sup>2</sup>/s B) (12 - 3 - 4 ) kg ∙ m<sup>2</sup>/s C) (8 + 14 - 13 ) kg ∙ m<sup>2</sup>/s D) (10 - + 2 ) kg ∙ m<sup>2</sup>/s E) (4 - 13 - 11.5 ) kg ∙ m<sup>2</sup>/s + 3m A 500-g particle is located at the point = 4m + 3m - 2m and is moving with a velocity = 5 m/s -2 ms + 4 m/s .What is the angular momentum of this particle about the origin? A) (24 - 6 - 8 ) kg ∙ m<sup>2</sup>/s B) (12 - 3 - 4 ) kg ∙ m<sup>2</sup>/s C) (8 + 14 - 13 ) kg ∙ m<sup>2</sup>/s D) (10 - + 2 ) kg ∙ m<sup>2</sup>/s E) (4 - 13 - 11.5 ) kg ∙ m<sup>2</sup>/s - 2m A 500-g particle is located at the point = 4m + 3m - 2m and is moving with a velocity = 5 m/s -2 ms + 4 m/s .What is the angular momentum of this particle about the origin? A) (24 - 6 - 8 ) kg ∙ m<sup>2</sup>/s B) (12 - 3 - 4 ) kg ∙ m<sup>2</sup>/s C) (8 + 14 - 13 ) kg ∙ m<sup>2</sup>/s D) (10 - + 2 ) kg ∙ m<sup>2</sup>/s E) (4 - 13 - 11.5 ) kg ∙ m<sup>2</sup>/s and is moving with a velocity A 500-g particle is located at the point = 4m + 3m - 2m and is moving with a velocity = 5 m/s -2 ms + 4 m/s .What is the angular momentum of this particle about the origin? A) (24 - 6 - 8 ) kg ∙ m<sup>2</sup>/s B) (12 - 3 - 4 ) kg ∙ m<sup>2</sup>/s C) (8 + 14 - 13 ) kg ∙ m<sup>2</sup>/s D) (10 - + 2 ) kg ∙ m<sup>2</sup>/s E) (4 - 13 - 11.5 ) kg ∙ m<sup>2</sup>/s = 5 m/s A 500-g particle is located at the point = 4m + 3m - 2m and is moving with a velocity = 5 m/s -2 ms + 4 m/s .What is the angular momentum of this particle about the origin? A) (24 - 6 - 8 ) kg ∙ m<sup>2</sup>/s B) (12 - 3 - 4 ) kg ∙ m<sup>2</sup>/s C) (8 + 14 - 13 ) kg ∙ m<sup>2</sup>/s D) (10 - + 2 ) kg ∙ m<sup>2</sup>/s E) (4 - 13 - 11.5 ) kg ∙ m<sup>2</sup>/s -2 ms A 500-g particle is located at the point = 4m + 3m - 2m and is moving with a velocity = 5 m/s -2 ms + 4 m/s .What is the angular momentum of this particle about the origin? A) (24 - 6 - 8 ) kg ∙ m<sup>2</sup>/s B) (12 - 3 - 4 ) kg ∙ m<sup>2</sup>/s C) (8 + 14 - 13 ) kg ∙ m<sup>2</sup>/s D) (10 - + 2 ) kg ∙ m<sup>2</sup>/s E) (4 - 13 - 11.5 ) kg ∙ m<sup>2</sup>/s + 4 m/s A 500-g particle is located at the point = 4m + 3m - 2m and is moving with a velocity = 5 m/s -2 ms + 4 m/s .What is the angular momentum of this particle about the origin? A) (24 - 6 - 8 ) kg ∙ m<sup>2</sup>/s B) (12 - 3 - 4 ) kg ∙ m<sup>2</sup>/s C) (8 + 14 - 13 ) kg ∙ m<sup>2</sup>/s D) (10 - + 2 ) kg ∙ m<sup>2</sup>/s E) (4 - 13 - 11.5 ) kg ∙ m<sup>2</sup>/s .What is the angular momentum of this particle about the origin?


A) (24 A 500-g particle is located at the point = 4m + 3m - 2m and is moving with a velocity = 5 m/s -2 ms + 4 m/s .What is the angular momentum of this particle about the origin? A) (24 - 6 - 8 ) kg ∙ m<sup>2</sup>/s B) (12 - 3 - 4 ) kg ∙ m<sup>2</sup>/s C) (8 + 14 - 13 ) kg ∙ m<sup>2</sup>/s D) (10 - + 2 ) kg ∙ m<sup>2</sup>/s E) (4 - 13 - 11.5 ) kg ∙ m<sup>2</sup>/s - 6 A 500-g particle is located at the point = 4m + 3m - 2m and is moving with a velocity = 5 m/s -2 ms + 4 m/s .What is the angular momentum of this particle about the origin? A) (24 - 6 - 8 ) kg ∙ m<sup>2</sup>/s B) (12 - 3 - 4 ) kg ∙ m<sup>2</sup>/s C) (8 + 14 - 13 ) kg ∙ m<sup>2</sup>/s D) (10 - + 2 ) kg ∙ m<sup>2</sup>/s E) (4 - 13 - 11.5 ) kg ∙ m<sup>2</sup>/s - 8 A 500-g particle is located at the point = 4m + 3m - 2m and is moving with a velocity = 5 m/s -2 ms + 4 m/s .What is the angular momentum of this particle about the origin? A) (24 - 6 - 8 ) kg ∙ m<sup>2</sup>/s B) (12 - 3 - 4 ) kg ∙ m<sup>2</sup>/s C) (8 + 14 - 13 ) kg ∙ m<sup>2</sup>/s D) (10 - + 2 ) kg ∙ m<sup>2</sup>/s E) (4 - 13 - 11.5 ) kg ∙ m<sup>2</sup>/s ) kg ∙ m2/s
B) (12 A 500-g particle is located at the point = 4m + 3m - 2m and is moving with a velocity = 5 m/s -2 ms + 4 m/s .What is the angular momentum of this particle about the origin? A) (24 - 6 - 8 ) kg ∙ m<sup>2</sup>/s B) (12 - 3 - 4 ) kg ∙ m<sup>2</sup>/s C) (8 + 14 - 13 ) kg ∙ m<sup>2</sup>/s D) (10 - + 2 ) kg ∙ m<sup>2</sup>/s E) (4 - 13 - 11.5 ) kg ∙ m<sup>2</sup>/s - 3 A 500-g particle is located at the point = 4m + 3m - 2m and is moving with a velocity = 5 m/s -2 ms + 4 m/s .What is the angular momentum of this particle about the origin? A) (24 - 6 - 8 ) kg ∙ m<sup>2</sup>/s B) (12 - 3 - 4 ) kg ∙ m<sup>2</sup>/s C) (8 + 14 - 13 ) kg ∙ m<sup>2</sup>/s D) (10 - + 2 ) kg ∙ m<sup>2</sup>/s E) (4 - 13 - 11.5 ) kg ∙ m<sup>2</sup>/s - 4 A 500-g particle is located at the point = 4m + 3m - 2m and is moving with a velocity = 5 m/s -2 ms + 4 m/s .What is the angular momentum of this particle about the origin? A) (24 - 6 - 8 ) kg ∙ m<sup>2</sup>/s B) (12 - 3 - 4 ) kg ∙ m<sup>2</sup>/s C) (8 + 14 - 13 ) kg ∙ m<sup>2</sup>/s D) (10 - + 2 ) kg ∙ m<sup>2</sup>/s E) (4 - 13 - 11.5 ) kg ∙ m<sup>2</sup>/s ) kg ∙ m2/s
C) (8 A 500-g particle is located at the point = 4m + 3m - 2m and is moving with a velocity = 5 m/s -2 ms + 4 m/s .What is the angular momentum of this particle about the origin? A) (24 - 6 - 8 ) kg ∙ m<sup>2</sup>/s B) (12 - 3 - 4 ) kg ∙ m<sup>2</sup>/s C) (8 + 14 - 13 ) kg ∙ m<sup>2</sup>/s D) (10 - + 2 ) kg ∙ m<sup>2</sup>/s E) (4 - 13 - 11.5 ) kg ∙ m<sup>2</sup>/s + 14 A 500-g particle is located at the point = 4m + 3m - 2m and is moving with a velocity = 5 m/s -2 ms + 4 m/s .What is the angular momentum of this particle about the origin? A) (24 - 6 - 8 ) kg ∙ m<sup>2</sup>/s B) (12 - 3 - 4 ) kg ∙ m<sup>2</sup>/s C) (8 + 14 - 13 ) kg ∙ m<sup>2</sup>/s D) (10 - + 2 ) kg ∙ m<sup>2</sup>/s E) (4 - 13 - 11.5 ) kg ∙ m<sup>2</sup>/s - 13 A 500-g particle is located at the point = 4m + 3m - 2m and is moving with a velocity = 5 m/s -2 ms + 4 m/s .What is the angular momentum of this particle about the origin? A) (24 - 6 - 8 ) kg ∙ m<sup>2</sup>/s B) (12 - 3 - 4 ) kg ∙ m<sup>2</sup>/s C) (8 + 14 - 13 ) kg ∙ m<sup>2</sup>/s D) (10 - + 2 ) kg ∙ m<sup>2</sup>/s E) (4 - 13 - 11.5 ) kg ∙ m<sup>2</sup>/s ) kg ∙ m2/s
D) (10 A 500-g particle is located at the point = 4m + 3m - 2m and is moving with a velocity = 5 m/s -2 ms + 4 m/s .What is the angular momentum of this particle about the origin? A) (24 - 6 - 8 ) kg ∙ m<sup>2</sup>/s B) (12 - 3 - 4 ) kg ∙ m<sup>2</sup>/s C) (8 + 14 - 13 ) kg ∙ m<sup>2</sup>/s D) (10 - + 2 ) kg ∙ m<sup>2</sup>/s E) (4 - 13 - 11.5 ) kg ∙ m<sup>2</sup>/s - A 500-g particle is located at the point = 4m + 3m - 2m and is moving with a velocity = 5 m/s -2 ms + 4 m/s .What is the angular momentum of this particle about the origin? A) (24 - 6 - 8 ) kg ∙ m<sup>2</sup>/s B) (12 - 3 - 4 ) kg ∙ m<sup>2</sup>/s C) (8 + 14 - 13 ) kg ∙ m<sup>2</sup>/s D) (10 - + 2 ) kg ∙ m<sup>2</sup>/s E) (4 - 13 - 11.5 ) kg ∙ m<sup>2</sup>/s + 2 A 500-g particle is located at the point = 4m + 3m - 2m and is moving with a velocity = 5 m/s -2 ms + 4 m/s .What is the angular momentum of this particle about the origin? A) (24 - 6 - 8 ) kg ∙ m<sup>2</sup>/s B) (12 - 3 - 4 ) kg ∙ m<sup>2</sup>/s C) (8 + 14 - 13 ) kg ∙ m<sup>2</sup>/s D) (10 - + 2 ) kg ∙ m<sup>2</sup>/s E) (4 - 13 - 11.5 ) kg ∙ m<sup>2</sup>/s ) kg ∙ m2/s
E) (4 A 500-g particle is located at the point = 4m + 3m - 2m and is moving with a velocity = 5 m/s -2 ms + 4 m/s .What is the angular momentum of this particle about the origin? A) (24 - 6 - 8 ) kg ∙ m<sup>2</sup>/s B) (12 - 3 - 4 ) kg ∙ m<sup>2</sup>/s C) (8 + 14 - 13 ) kg ∙ m<sup>2</sup>/s D) (10 - + 2 ) kg ∙ m<sup>2</sup>/s E) (4 - 13 - 11.5 ) kg ∙ m<sup>2</sup>/s - 13 A 500-g particle is located at the point = 4m + 3m - 2m and is moving with a velocity = 5 m/s -2 ms + 4 m/s .What is the angular momentum of this particle about the origin? A) (24 - 6 - 8 ) kg ∙ m<sup>2</sup>/s B) (12 - 3 - 4 ) kg ∙ m<sup>2</sup>/s C) (8 + 14 - 13 ) kg ∙ m<sup>2</sup>/s D) (10 - + 2 ) kg ∙ m<sup>2</sup>/s E) (4 - 13 - 11.5 ) kg ∙ m<sup>2</sup>/s - 11.5 A 500-g particle is located at the point = 4m + 3m - 2m and is moving with a velocity = 5 m/s -2 ms + 4 m/s .What is the angular momentum of this particle about the origin? A) (24 - 6 - 8 ) kg ∙ m<sup>2</sup>/s B) (12 - 3 - 4 ) kg ∙ m<sup>2</sup>/s C) (8 + 14 - 13 ) kg ∙ m<sup>2</sup>/s D) (10 - + 2 ) kg ∙ m<sup>2</sup>/s E) (4 - 13 - 11.5 ) kg ∙ m<sup>2</sup>/s ) kg ∙ m2/s

Correct Answer

verifed

verified
